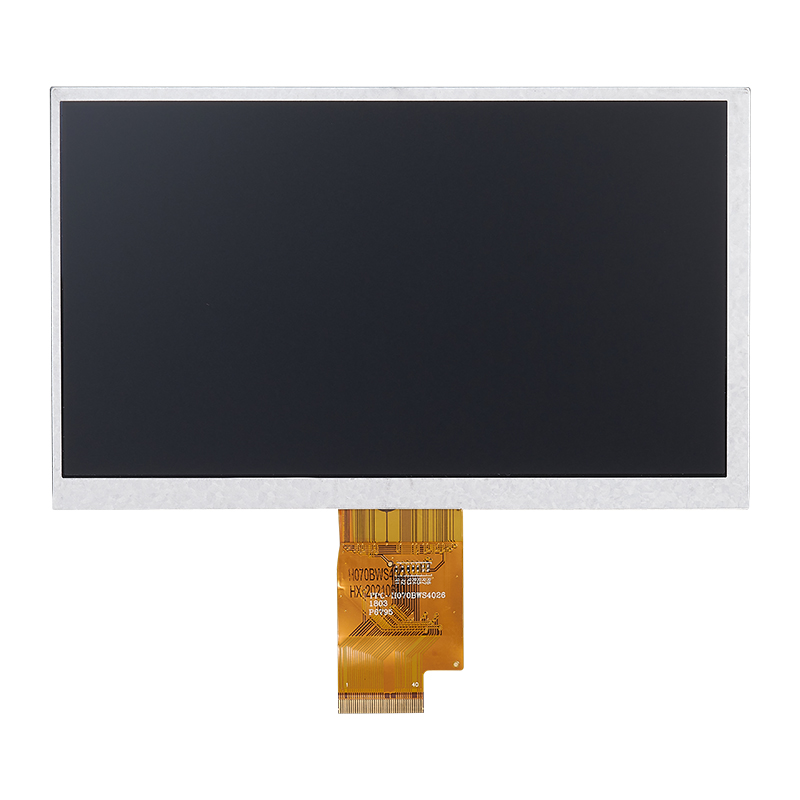

7寸液晶屏 1024*600分辨率 LVDS接口IPS屏
型號：H070BWS40I3523
尺寸：7 inch
分辨率： 1024(RGB) × 600
接口方式：40pin LVDS
外觀尺寸（顯示區域）：164.9*100*3.5（154.21 x 85.92）
亮度：350 nits
服務熱線：139-2345-7816（雷總）
按需求定制
質量保障
品牌認證
當前位置：首頁 > 產品中心
型號：H070BWS40I3523
尺寸：7 inch
分辨率： 1024(RGB) × 600
接口方式：40pin LVDS
外觀尺寸（顯示區域）：164.9*100*3.5（154.21 x 85.92）
亮度：350 nits
按需求定制
質量保障
品牌認證
產品參數
產品圖紙
尺寸、接口等規格均可定制，可配電容觸摸、電阻觸摸。如有其它規格需求請聯系我們，我們將竭誠為您服務。
一、產品參數：
Size | 7.0 inch |
Resolution | 1024(Horizontal)*600(Vertical) |
Interface | LVDS |
Connect type | Connector |
Color Depth | 262K |
Technology type | a-Si |
Display Spec. Pixel pitch (mm) | 0.05 x 0.15 |
Pixel Configuration | R.G.B. Vertical Stripe |
Display Mode | Normally Black |
- | |
Surface Treatment | HC |
Viewing Direction | ALL |
LCM (W x H x D) (mm) | 164.9*100*3.5 |
Active Area(mm) | 154.21 x 85.92 |
With /Without TSP | Without |
Weight (g) | TBD |
LED Numbers | 24LEDs |
二、產品接口定義：
No. | Symbol | Description |
1 | VCOM | Common Voltage |
2 | VDD | Power Voltage for digital circuit |
3 | VDD | Power Voltage for digital circuit |
4 | NC | No connection |
5 | RESET | Global reset pin |
6 | STBYB | Standby mode Normally pulled high STBYB=1,normal operation STBYB=0,timing contrller,source Driver will turn off,all output are High-Z |
7 | GND | Ground |
8 | RXIN0- | -LVDS differential data input |
9 | RXIN0+ | +LVDS differential data input |
10 | GND | Ground |
11 | RXIN1- | -LVDS differential data input |
12 | RXIN1+ | +LVDS differential data input |
13 | GND | Ground |
14 | RXIN2- | -LVDS differential data input |
15 | RXIN2+ | +LVDS differential data input |
16 | GND | Ground |
17 | RXCLKIN- | -LVDS differential clock input |
18 | RXCLKIN+ | +LVDS differential clock input |
19 | GND | Ground |
20 | RXIN3- | -LVDS differential data input |
21 | RXIN3+ | -LVDS differential data input |
22 | GND | Ground |
23 | NC | No connection |
24 | NC | |
25 | GND | Ground |
26 | NC | No connection |
27 | DIMO | Backlight CABC controller signal output |
28 | SELB | 6bit/8bit mode select (Note 1) |
29 | AVDD | Power for Analog Circuit |
30 | GND | Ground |
31 | LED- | LED Cathode |
32 | LED- | LED Cathode |
33 | L/R | Horizontal inversion (Note 3) |
34 | U/D | Vertical inversion (Note 3) |
35 | VGL | Gate oFF Voltage |
36 | CABCEN1 | CABC H/W enable (Note 2) |
37 | CABCEN0 | CABC H/W enable (Note 2) |
38 | VGH | Gate ON Voltage |
39 | LED+ | |
40 | LED+ | LED Anode |

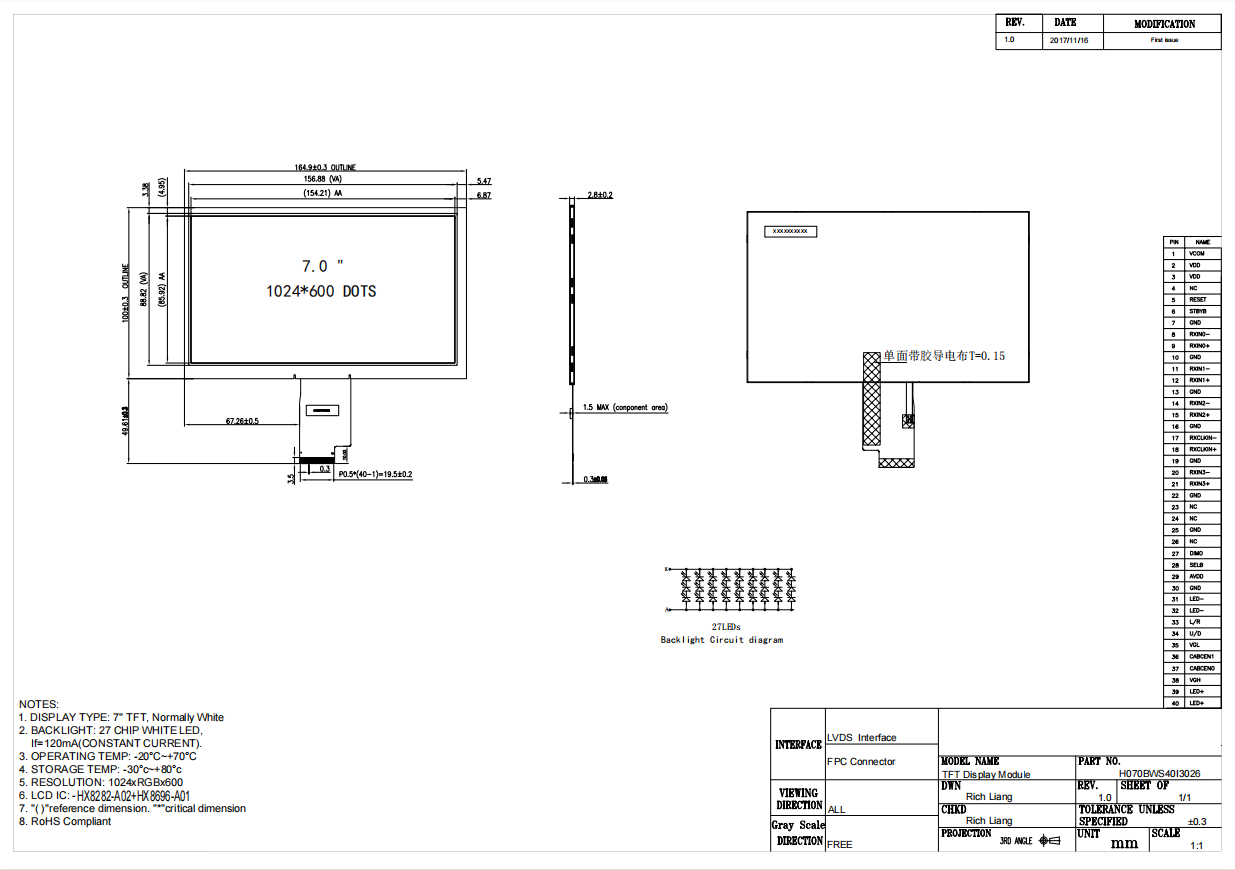

三、產品尺寸圖紙
